Nexis 110° Sprung Concealed Cup Hinge Full Overlay Mounting
  Zoom
Nexis 110° Sprung Concealed Cup Hinge Full Overlay MountingNexis 110° Sprung Concealed Cup Hinge Full Overlay MountingNexis 110° Sprung Concealed Cup Hinge Full Overlay Mounting

Nexis 110° Sprung Concealed Cup Hinge Full Overlay Mounting

  (0)
£2.25
inc. 20% VAT (£1.88 exc. VAT)
In stock

In stock

-
+
Free Delivery on orders over £100*
Click & Collect available
  • Opening angle 110º
  • Sprung
  • Without soft close

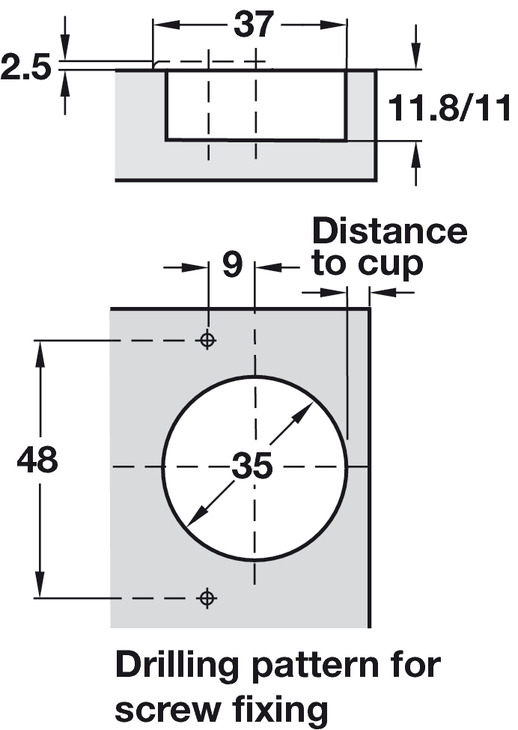

  • Ø 35 mm screw fixing cup
  • For door thickness up to 22 mm
  • Nickel plated pressed steel cup and arm

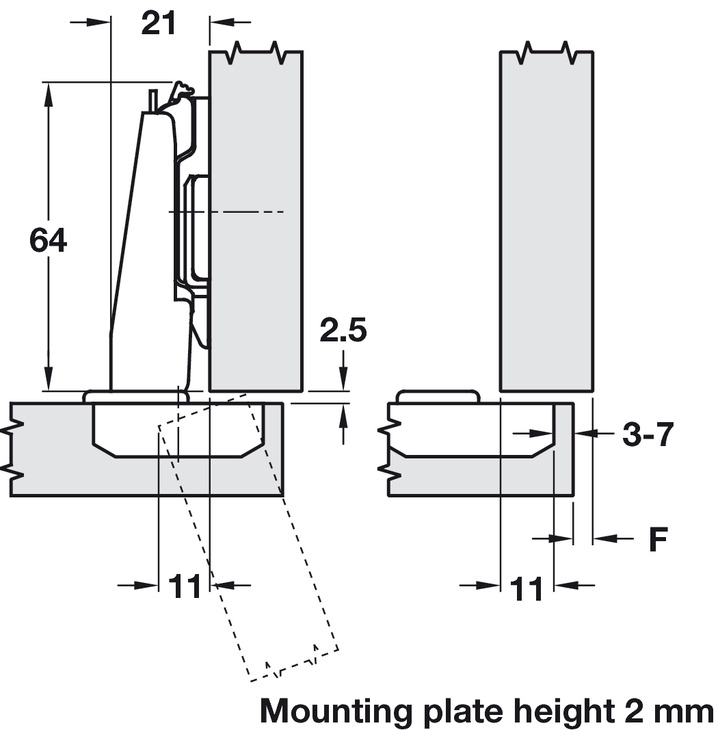

  • Mounting plate 12288 must be ordered separately
  • Order qty: 1 pc (order 2 pcs per door)

Bar Code:  322.17.530
Part Number:  15175
Brand:  GRASS

Be the first to Write a review for this item!
