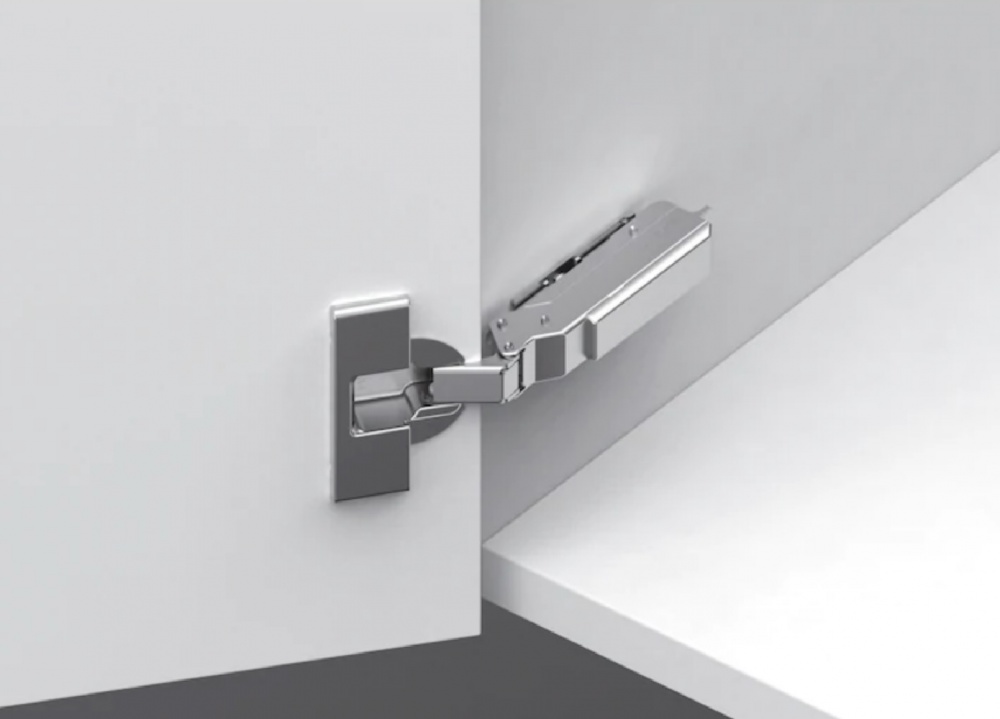

Tiomos 110° PLUS Cabinet Door Concealed Hinge Screw Fixing
  Zoom
 Tiomos 110° PLUS Cabinet Door Concealed Hinge Screw FixingTiomos 110° PLUS Cabinet Door Concealed Hinge Screw Fixing

Tiomos 110° PLUS Cabinet Door Concealed Hinge Screw Fixing

  (0)
£4.50
inc. 20% VAT (£3.75 exc. VAT)
In stock

In stock


-
+
Free Delivery on orders over £100*
Click & Collect available
  • Up to 24 mm (for door thicknesses 24 mm and above, a trial fitting is recommended)
  • For door overlay from 24mm , use mounting plate 348.38.560
  • Opening angle 110º
  • Ø 35 mm cup
  • With or without soft close system
  • Screw fixing cup
  • Click on arm
  • Steel cup and zinc alloy hinge arm
  • Note:

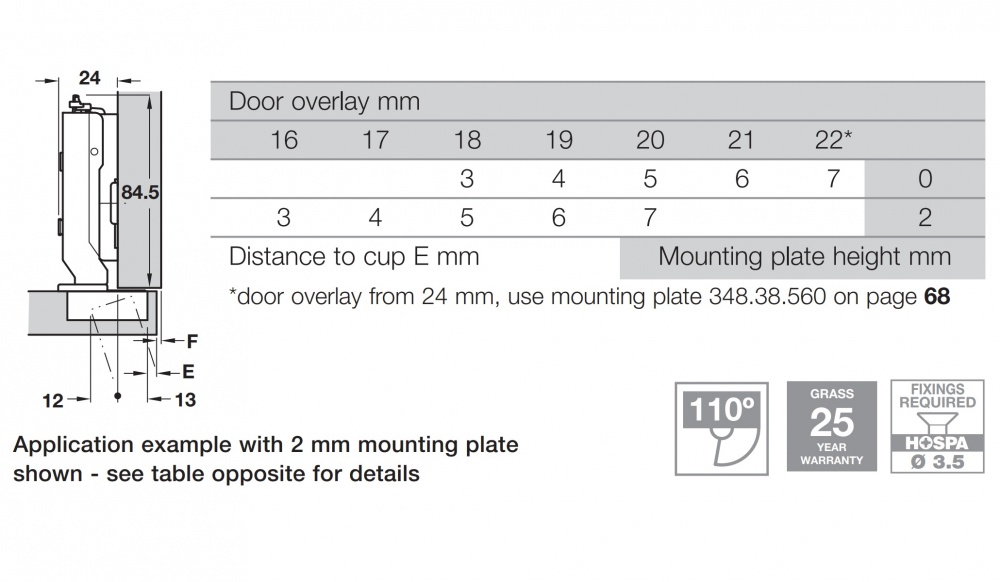

  •  - dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm
  • Mounting plates and cover caps are not included
  • Order qty: 1 pc

Bar Code:  348.31.600
Part Number:  17264
Brand:  GRASS

Be the first to Write a review for this item!
