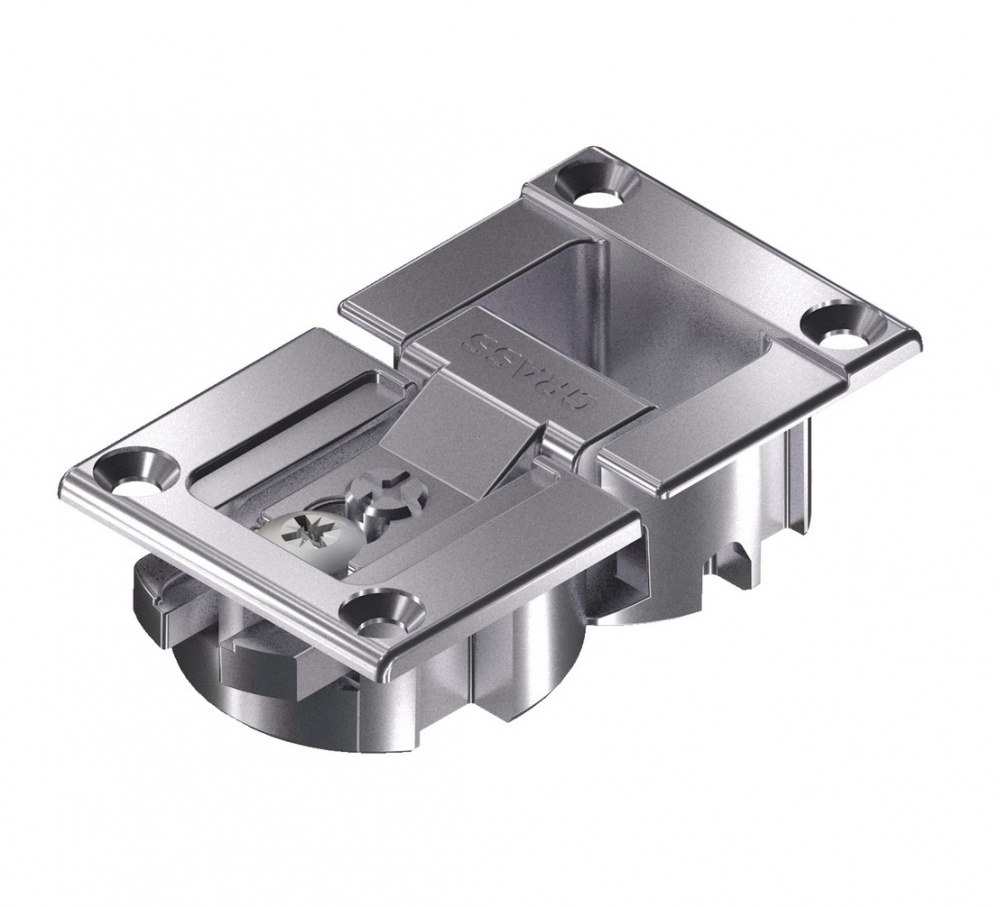

Tiomos 90 Flap Hinge for up to 21 mm thickness
  Zoom
Tiomos 90 Flap Hinge for up to 21 mm thicknessTiomos 90 Flap Hinge for up to 21 mm thicknessTiomos 90 Flap Hinge for up to 21 mm thicknessTiomos 90 Flap Hinge for up to 21 mm thicknessTiomos 90 Flap Hinge for up to 21 mm thickness

Tiomos 90 Flap Hinge for up to 21 mm thickness

  (0)
£6.70
inc. 20% VAT (£5.58 exc. VAT)
In stock

In stock


-
+
Free Delivery on orders over £100*
Click & Collect available
  • Modern design
  • Narrow joint
  • Large overlay of up to 19 mm

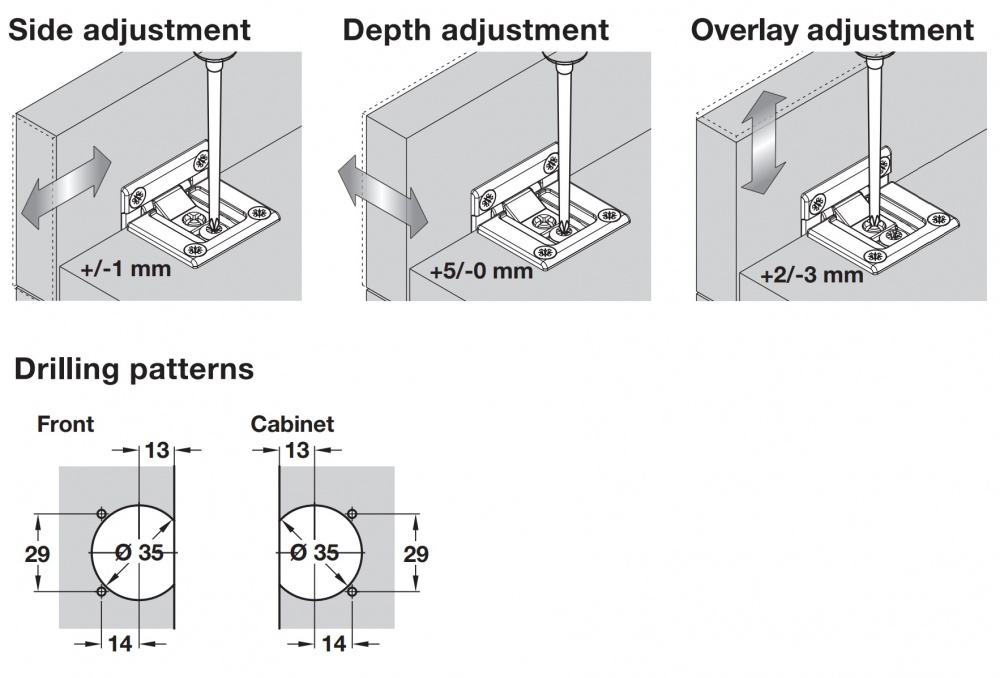

  • 3D adjustment
  • Compatible with Tipmatic
  • Compatible with Kinvaro D-M/D-S
  • Material: zamak

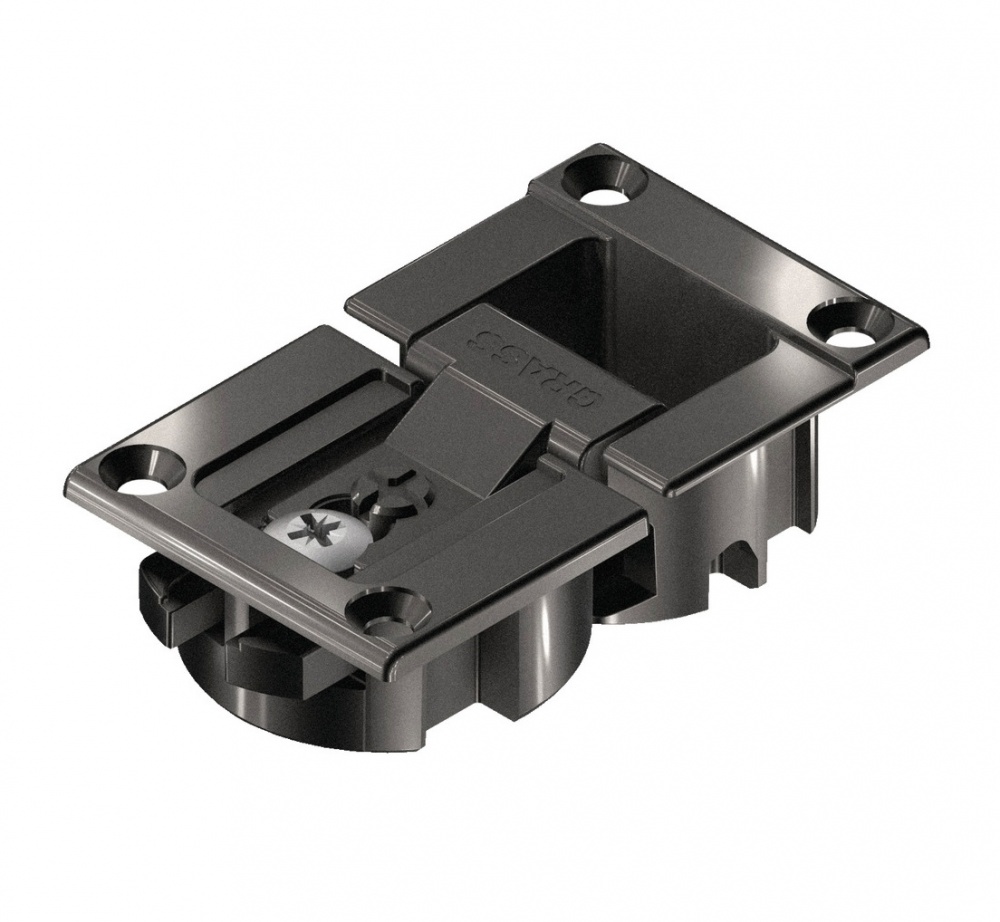

  • Finish: nickel plated or Tiomos night anthracite
  • Opening angle: 90 °

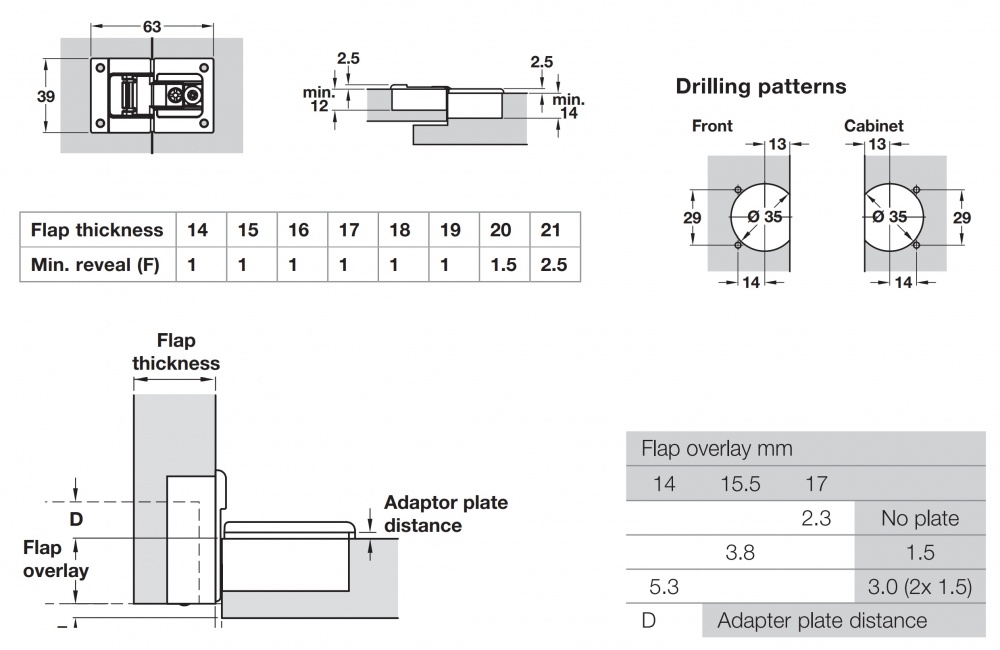

  • For lid thickness: 14 – 21 mm
  • Installation: screw fixing
  • Order Hospa Ø 3.5 mm countersunk screws and cover caps separately
  • Order qty: 1 pc

Bar Code:  348.78.720
Part Number:  16843
Brand:  GRASS
