Vauth-Sagel Dusa Swing out Pantry Larder Unit

Zoom

Our Price: £599.00(Inc. 20% VAT)(£499.17 Exc. VAT)

–+

Height:
Cabinet width:

Bar Code: 549.58.033
Part Number: 13103
Brand: Vauth Sagel

FREE Delivery on order over £100*

Information
Customer Reviews (0)
Video

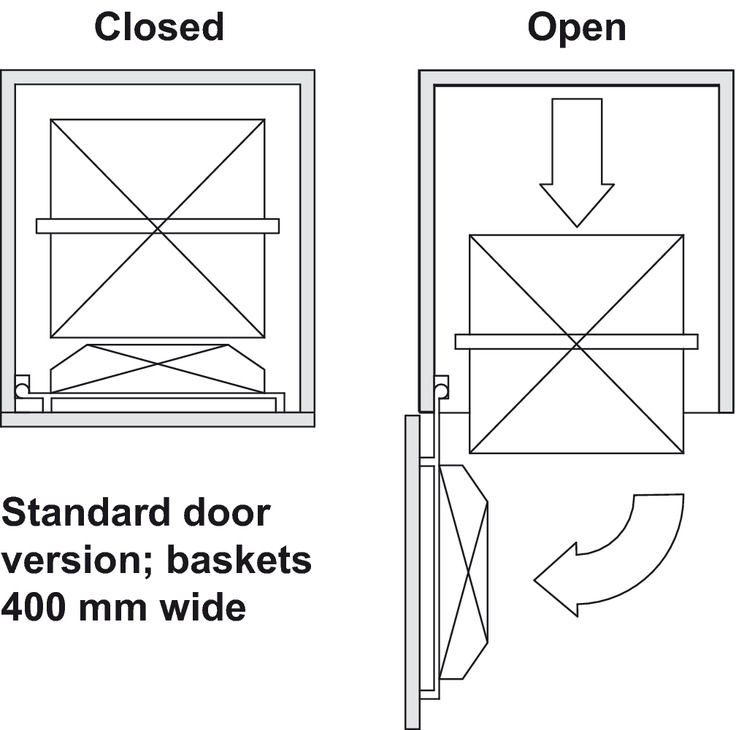

DUSA swing out pantry units for 500 and 600 mm cabinet widths include baskets for both door frame and main pull out. The pantry unit is easy to use; the baskets are pulled out of the cabinet at the same time as the door is opened.

For 500 and 600 mm cabinet widths, this pull out pantry unit includes baskets for both door frame and main pull out
The pantry unit is easy to use; the baskets are pulled out of the cabinet at the same time as the door is opened
Baskets can be individually positioned at the required height in both the cabinet frame and on the door frame
Symmetrical height alignment of both cabinet and door baskets is possible, if required
Two integrated dampers ensures quiet, smooth closing of the pull out
Pantry units are supplied complete with chrome wire mesh baskets
Cabinet is not included
For installed heights:
- 1700-1950 or 1900-2150 mm: 5x baskets (door and main each) included
Built-in depth: 480 mm
For cabinet widths 500 or 600 mm
Baskets are individually height adjustable
Frame load capacity: 20 kg
Every set comes complete with fixing materials and fitting instructions

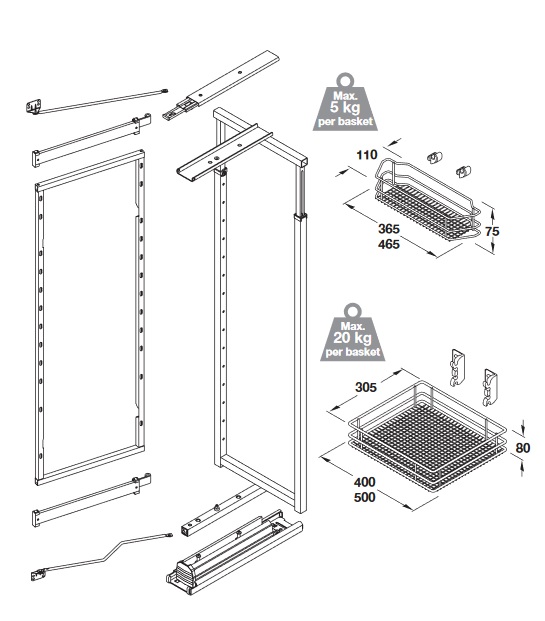

Set includes:
- hanging frame; silver epoxy coated tubular steel, height adjustable
- door mounting frame; silver epoxy coated steel with zinc-plated steel hinge support arms
- top and bottom runners; full extension, ball cage top runner with damper and self closing bottom roller runner with damper, max. load carrying capacity 80 kg per unit
- storage baskets for main frame; chrome-plated steel, mesh chrome wire
- storage baskets for door frame, mesh chrome wire
- basket hanging and securing clips; grey plastic
- door frame support hinges; grey plastic
- door panel mounting bars; silver epoxy coated tubular steel
- door frame fixing arm; grey plastic, adjustable
Order qty: 1 set
